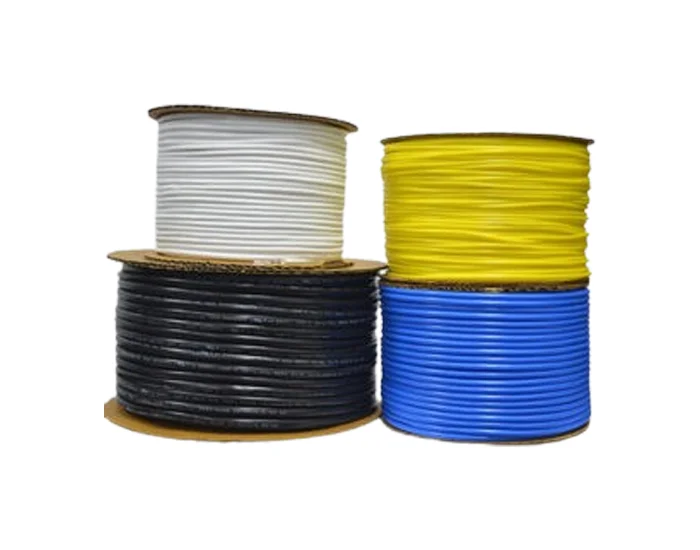

SGI's Non Heat Shrinkable Flexible PVC Tubing are recognized & listed by UL vide file no E529391 (YDPU2/ YDPU8) for both 300 V and 600 V with 900C & 1050C applications for Sizes of Inner Dia from (0.50 mm to 19.0 mm) for all colors except clear.
| Product Code | ID (mm) | Avg. Wall Th. | Size | Ft. | Mtr. |
|---|---|---|---|---|---|
| SLUL3-3101 | 0.5 | 0.35 | 24 AWG | 1000 | 304.8 |
| SLUL3-3102 | 1.07 | 0.35 | 18 AWG | 1000 | 304.8 |
| SLUL3-3103 | 1.6 | 0.35 | 14 AWG | 1000 | 304.8 |
| SLUL3-3104 | 2.16 | 0.35 | 12 AWG | 1000 | 304.8 |
| SLUL3-3105 | 2.69 | 0.35 | 10 AWG | 1000 | 304.8 |
| SLUL3-3106 | 3 | 0.45 | 9 AWG | 1000 | 304.8 |
| SLUL3-3107 | 3.5 | 0.45 | 3.50 mm | 1000 | 304.8 |
| SLUL3-3108 | 4.22 | 0.45 | 6 AWG | 500 | 152.4 |
| SLUL3-3109 | 5.28 | 0.45 | 4 AWG | 500 | 152.4 |
| SLUL3-3110 | 5.94 | 0.45 | 3 AWG | 500 | 152.4 |
| SLUL3-3111 | 6.68 | 0.45 | 2 AWG | 250 | 76.2 |
| SLUL3-3112 | 7.4 | 0.45 | 1 AWG | 250 | 76.2 |
| SLUL3-3113 | 8.38 | 0.45 | 0 AWG | 250 | 76.2 |
| SLUL3-3114 | 9.5 | 0.6 | 3/8 inch | 250 | 76.2 |
| SLUL3-3115 | 11.1 | 0.6 | 7/16 inch | 100 | 30.5 |
| SLUL3-3116 | 12.7 | 0.6 | 1/2 inch | 100 | 30.5 |
| SLUL3-3117 | 15.9 | 0.7 | 5/8 inch | 100 | 30.5 |
| SLUL3-3118 | 19 | 0.8 | 3/4 inch | 100 | 30.5 |
Widely used for Cable & Wire Harness protection.PVC Tubing is applied in various electronics, electrical, automobile, equipment and gadgets.Made from premium virgin Lead free PVC compound meeting both 90°C & 105°C applications for both 300 V and 600 V manufactured in-house by SGI.The Tubing has excellent Electrical and Physical properties, oil, acid and corrosion resistance as per UL-224.PVC Tubing is recognized and listed by UL under file no E529391 with optional Flammability ratings ( VW-1 ) and Oil Resistance ratings. ( Class 01) for all colors except clear for size Range 0.50- 19.0 mm Internal Diameter.Get in touch today for customized electrical and hardware solutions that drive your business forward.
