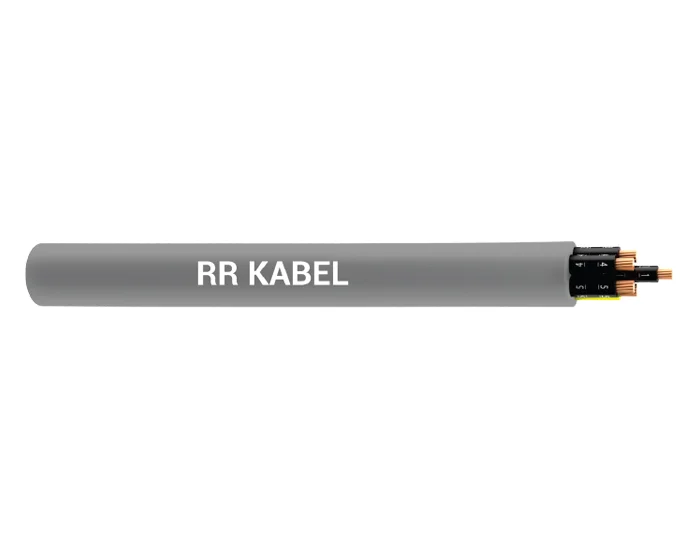

Control Cable(Is 694)
Application
These cables are designed for residential and commercial infrastructure. They serve as the connecting medium in power and control panels, cabinets & switchgears. They can also used for the purposes such as stationary and static appliances, motors and for other single phase connections.
Ratnaflex -M: PVC insulated & sheathed multicore cables suitable for all general purpose wirings for max. operating temperature of 70°C- Ratnaflex -M HR: HR PVC insulated & sheathed multicore cales suitable for higher operating temperature of 70°C
- Ratnaflex -M FR: Flame Retardant (FR) multicore cable enhances safety and are suitable for max. operating temperature 70°C
- Ratnaflex -M HRFR: Heat Resistant (HR) & Flame Retardant (FR) multicore cables are suitable for higher operating temperature up to 85°C with enhanced safety
- Ratnaflex -M FR-LSH: Flame Retardant Low Smoke Low Halogen (FR-LSH) cables are suitable for wiring in public places like schools, hospitals, theatres, etc.
Technical Data
- Approvals : IS 694 marked, FIA/TAC
- Conductor: Electrolytic grade annealed copper Class-5 as per IS 8130, having uniform resistance properties
- Core Colours : All black colour cores with continous white numbering, gn-yl core on outer most layer for earth if applicable
- Standard Cable Colour: Black (RAL 9005) & Grey (RAL 7001)
- Voltage: Up to and including 1100V
- Packing: Standard packing of 100 mtr. in coils. Longer length available on request

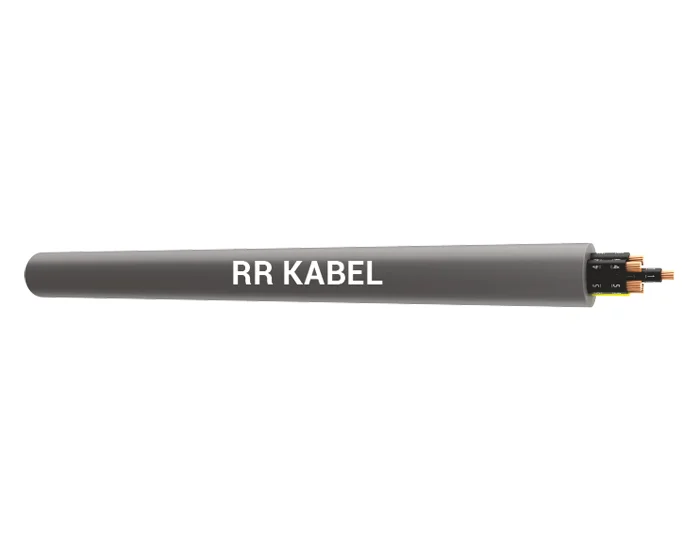

JZ-500
Application
These cables are used for flexible use for medium mechanical stresses with free movement without tensile stress of forced movements in dry, moist and wet rooms but not suitable for outdoor installation. Fit for measuring and control cables in tool machines, conveyor belts production lines in machinery production, in air-conditioning and steel production.
Standard
- Requirement adapted to DIN VDE 0245, 0281, 0293, 0295.
Technical Data
- Nominal Voltage: Uo / U 300 / 500V
- Insulation Resistance: Min. 20 GΩ x cm
- Temperature Range: Flexing -5°C to +70°C. Fixed installation -30°C to +70°C
- Minimum Bending Radius: Flexing 7.5 x cable ø. Fixed installation 4 x cable ø
- Test Voltage: 4000V
- Breakdown Voltage: Min. 8000V
Cable Construction
- Bare copper, fine wire conductors, to EN 60228 Cl.5.
- Core insulation of special PVC TI2 EN 50363-3.
- Black core with continuous white numbering according to DIN VDE 0293
- Green/yellow earth core in the outer layer (3 cores and above).
- Cores stranded in layers with optimal lay-length.
- Outer sheath of special PVC, TM2 to EN 50363-4.1.
- Colour grey (RAL 7001).
Properties
- PVC self-extinguishing and flame retardant according to EN 60332-1-2.
- JZ-500 is Also Available In oil resistant variant as JZ-500 OR. The outer sheath provided here is of special PVC, TM5 to EN 50363 -4.1.
- For Oil Resistant sheath kindly add 'OR' after the part nos.
