Introduction
HUMMEL circular connectors are used in many industrial applications. The product range covers sizes M8 to M40. Whether power or signal connectors, Industrial Ethernet or customer-specific special applications HUMMEL offers the right solution for every requirement. Quick release fastener variants, angle, coupling and appliance plugs for the most varied installation situations round off the respective product families; they are also available as INOX versions.

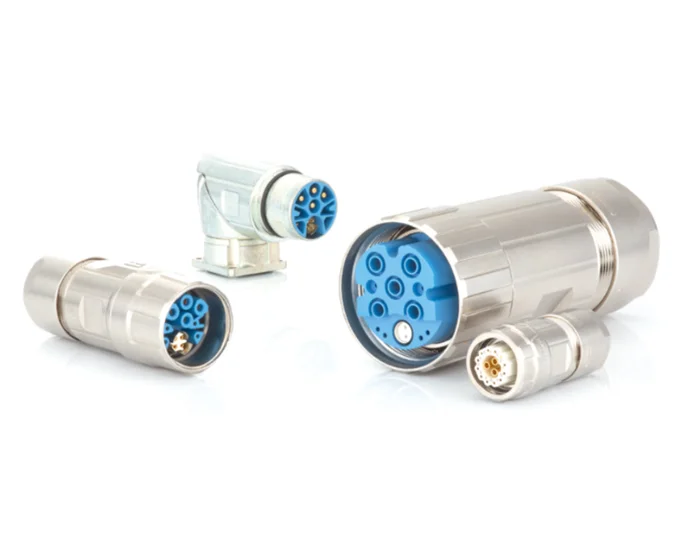

Hybrid
Hybrid connectors combine various electrical functions in one unit. They transmit power, signals (analog) and data/Ethernet (digital).
Advantages
One connector instead of 2 or 3 (⇒ at least halving)- Reduced space requirement
- Shorter processing time for connector assembly
- Reduced costs
- Less weight on the end device (e.g. motor)
- Option: Several cables can also be brought together in one connector. (Multi)

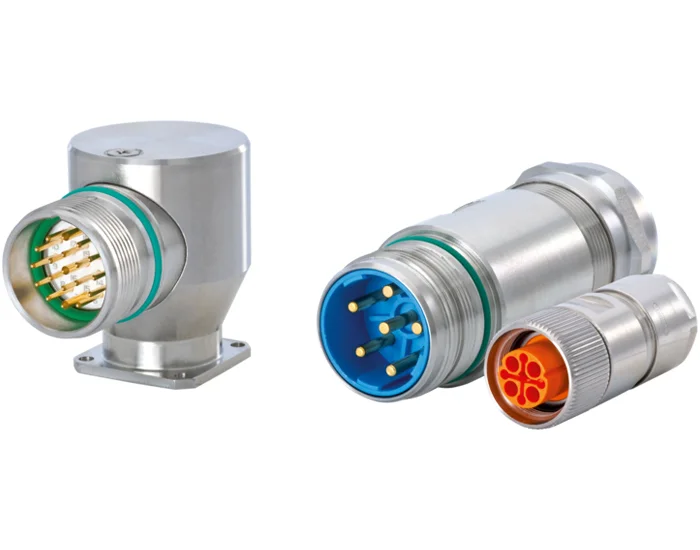

Inox
- M16, M23 and M40
- Stainless steel V4A (AISI 316 L / 1.4404) housing
- Ideal for rough applications
- Suitable for food related areas, pharmaceutical industry and offshore applications

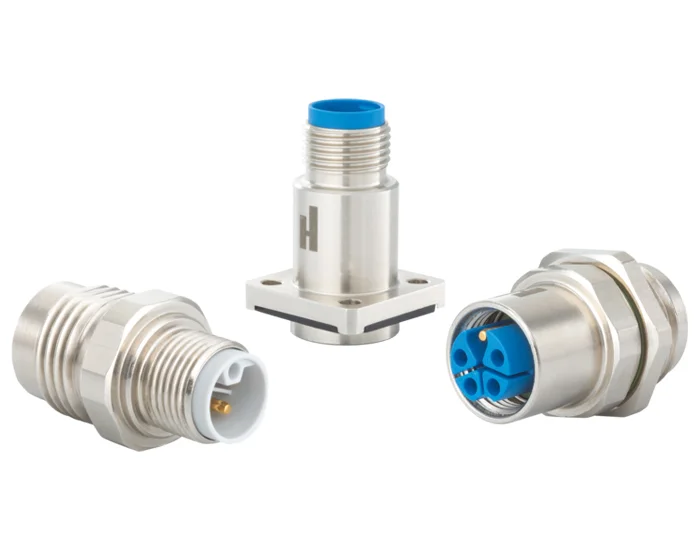

M12 Power
- Highest power density
- Cable entry 3 11 mm
- Power transmission up to 630 V and 16 A
- Robust metal housing, optionally in stainless steel
- EMC shielding as standard
- Codes K, L, S, T
- Freely configurable, compact designs
- Moulded cables

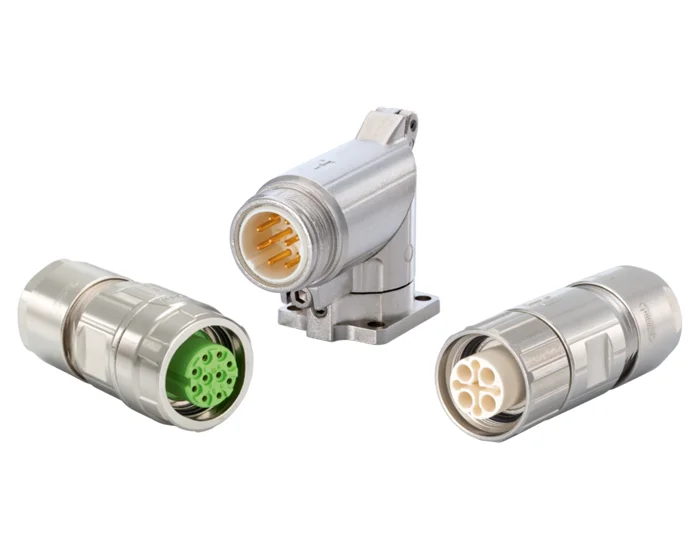

M16
- Number of poles 3, 4+3+PE, 6+PE, 10, 12+3, 12+6
- Cable entry 3 - 11 mm
- Compact design (Ø lesser than 20 mm)
- Housing can be freely combined with pin and socket inserts
- Optional TWILOCK quick connect

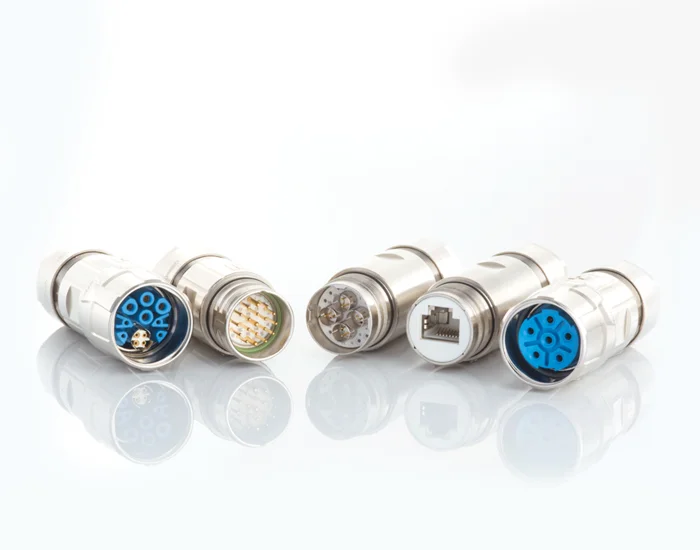

M23
- Signal, Power, Industrial Ethernet, Hybrid
- Modular concept: housing and inserts can be combined
- Screw or TWILOCK quick connect
- TWILOCK-S: pluggable with Speedtec
- Approvals according to UL, CSA and VDE

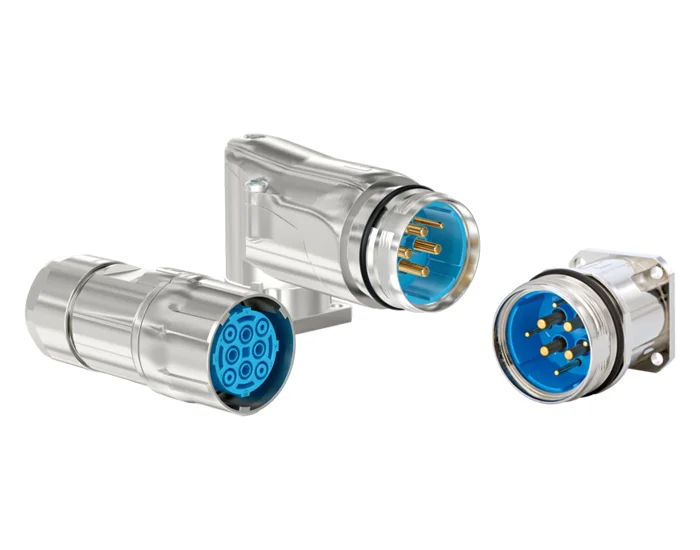

M40
- Number of poles 2+3+PE, 4+3+PE
- Cable entry 13 - 28 mm
- Power transmission up to 55 A
- Crimp contacts max.16 mm2
- User-friendly installation
- TWILOCK-S: pluggable with Speedtec

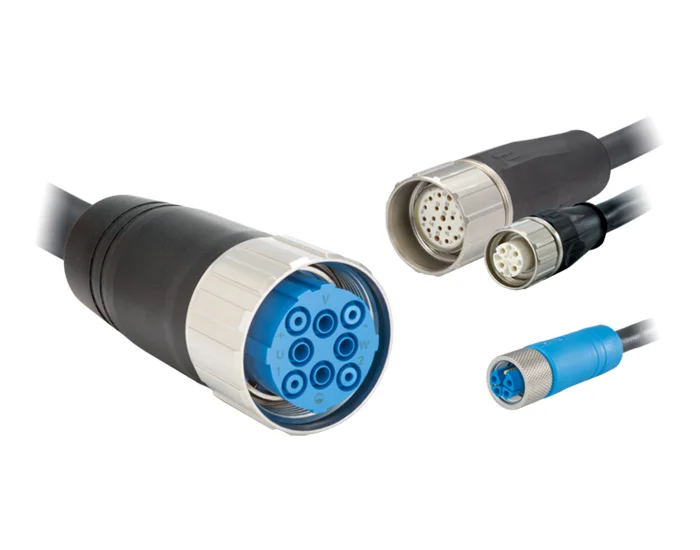

Moulded Circular Connectors
- M8, M12, M16, M23 and M40
- Moulding in various colours possible
- Manipulation protection
- Straight and angled designs
- Shielded or unshielded
