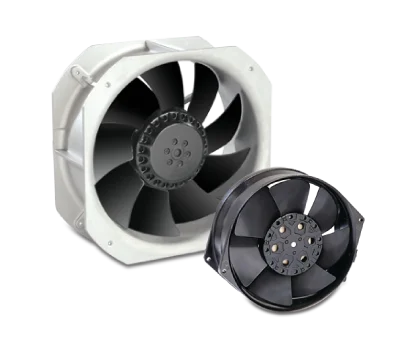

Compact Fan(AC) - All Metals 120 x 120 x 38 mm
AC Axial
| Model | Bearing* | Voltage (VAC) |
Frequency (Hz) |
Current (mA) |
Speed (RPM) |
Watt (W) |
Air Flow (CFM) |
Static Pressure (mm H₂O) |
Noise (dBA) |
|---|---|---|---|---|---|---|---|---|---|
| 120 x 120 x 38 mm - Metal | |||||||||
| 12A230HBAC-M | Ball | 230 | 50/60 | 100/90 | 2700/3100 | 17/15 | 95/107 | 8.4/9.4 | 42/46 |
COMPACT FAN (AC) - All Metals 172 x 150 x 55 mm
AC Axial
| Model | Bearing* | Voltage (VAC) |
Frequency (Hz) |
Current (mA) |
Speed (RPM) |
Watt (W) |
Air Flow (CFM) |
Static Pressure (mm H₂O) |
Noise (dBA) |
|---|---|---|---|---|---|---|---|---|---|
| 172 x 150 x 55 mm - Metal | |||||||||
| 17A230HBAC-M | Ball | 230 | 50/60 | 250/230 | 2800/3250 | 42/42 | 195230 | 14/16 | 49/53 |
Compact Fan(AC) - All Metals 280 x 280 x 80 mm
AC Axial
| Model | Bearing* | Voltage (VAC) |
Frequency (Hz) |
Current (mA) |
Speed (RPM) |
Watt (W) |
Air Flow (CFM) |
Static Pressure (mm H₂O) |
Noise (dBA) |
|---|---|---|---|---|---|---|---|---|---|
| 280 x 280 x 80 mm - Metal | |||||||||
| 280A230HBAC-M | Ball | 230 | 50/60 | 590/820 | 2500/2700 | 119/130 | 1090/1130 | 16.5/20 | 68/70 |
Compact Fan(AC) -All Metals 225 x 225 x 80 mm
AC Axial
| Model | Bearing* | Voltage (VAC) |
Frequency (Hz) |
Current (mA) |
Speed (RPM) |
Watt (W) |
Air Flow (CFM) |
Static Pressure (mm H₂O) |
Noise (dBA) |
|---|---|---|---|---|---|---|---|---|---|
| 225 x 225 x 80 mm - Metal | |||||||||
| 225A230HBAC-M | Ball | 230 | 50/60 | 400/425 | 2500/2800 | 80/85 | 530/600 | 17/14 | 59/61 |
