Compact Fan(DC) 60 x 60 x 20 mm (Also Available 6D x 6D x 25 mm)
| Model | Bearing* | Voltage (VDC) |
Current (mA) |
Speed (RPM) |
Air Flow (CFM) |
Static Pressure (mm H₂O) |
Noise (dBA) |
|---|---|---|---|---|---|---|---|
| 60 x 60 x 20 mm (Also Available 6D x 6D x 25 mm) | |||||||
| 6P12HSDC | Sleeve | 12 | 180 | 4300 | 18 | 3.8 | 30 |
| 6P24HSDC | Sleeve | 24 | 125 | 4300 | 18 | 3.8 | 30 |
Compact Fan(DC) 92 x 92 x 25mm (Available Upto 65 CFM)
| Model | Bearing* | Voltage (VDC) |
Current (mA) |
Speed (RPM) |
Air Flow (CFM) |
Static Pressure (mm H₂O) |
Noise (dBA) |
|---|---|---|---|---|---|---|---|
| 92 x 92 x 25 mm (Available Up to 65 CFM) | |||||||
| 9P12HBDC | Ball | 12 | 300 | 2500 | 55 | 5 | 40 |
| 9P24HBDC | Ball | 24 | 200 | 2500 | 55 | 5 | 40 |
| 9P48HBDC | Ball | 48 | 100 | 3000 | 55 | 5 | 40 |
Compact Fan(DC) 120 x 120 x 38 mm
| Model | Bearing | Voltage (VDC) |
Current (mA) |
Speed (RPM) |
Air Flow (CFM) |
Static Pressure (mm H₂O) |
Noise (dBA) |
|---|---|---|---|---|---|---|---|
| 120 x 120 x 38 mm | |||||||
| 12P12HBDC | Ball | 12 | 350 | 3000 | 105 | 8 | 48 |
| 12P24HBDC | Ball | 24 | 250 | 3000 | 105 | 8 | 48 |
| 12P48HBDC | Ball | 48 | 105 | 3000 | 105 | 8 | 48 |
| 12P48H1BDC (190CFM) | Ball | 48 | 400 | 4200 | 192 | 17.1 | 54.6 |
| 12P48H1BDC (240CFM) | Ball | 48 | 1330 | 5500 | 285 | 47.1 | 69.5 |

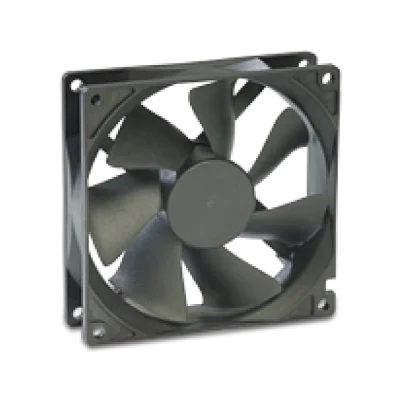

Compact Fan(DC) 172 x 150 x 51 mm & 172 x 172 x 50 mm
| Model | Bearing* | Voltage (VDC) |
Current (mA) |
Speed (RPM) |
Air Flow (CFM) |
Static Pressure (mm H₂O) |
Noise (dBA) |
|---|---|---|---|---|---|---|---|
| 172 x 150 x 51 mm & 172 x 172 x 50 mm (Available Up to 282 CFM) | |||||||
| 17A12HBDC | Ball | 12 | 1600 | 3000 | 210 | 13 | 58 |
| 17A24HBDC | Ball | 24 | 750 | 3000 | 210 | 13 | 58 |
| 17A48HBDC | Ball | 48 | 450 | 3000 | 210 | 13 | 58 |
Compact Fan(DC) 80 x 80 x 25 mm (Available Upto 58 CFM)
| Model | Bearing* | Voltage (VDC) |
Current (mA) |
Speed (RPM) |
Air Flow (CFM) |
Static Pressure (mm H₂O) |
Noise (dBA) |
|---|---|---|---|---|---|---|---|
| 80 x 80 x 25 mm (Available Up to 58 CFM) | |||||||
| 8P12HBDC | Ball | 12 | 200 | 3000 | 38 | 4.5 | 34 |
| 8P24HBDC | Ball | 24 | 150 | 3000 | 38 | 4.5 | 34 |
| 8P48HBDC | Ball | 48 | 70 | 3000 | 38 | 4.5 | 34 |
