A7JSJSA6021
Product Description

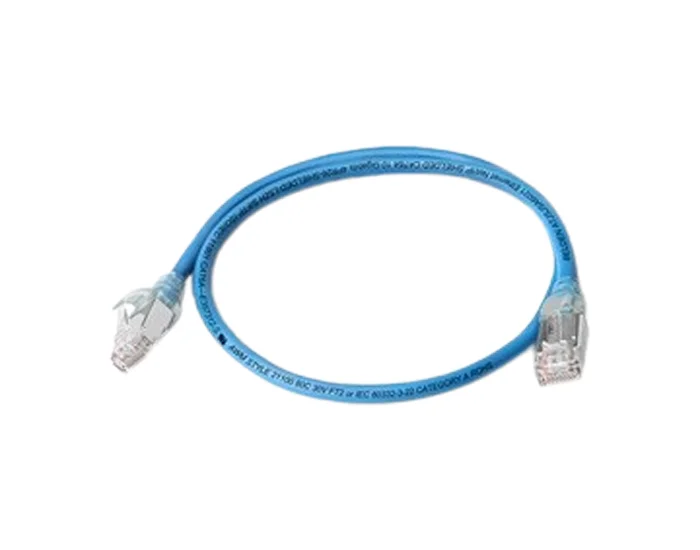

Ethernet/IP CAT6A 10 Gbps 10 Gigabit Ethernet double-ended cordset, Male straight transparent RJ45 to male straight transparent RJ45, shielded, LSZH cable, 8 wires.
Product Details
| Product Family | EtherNet / IP Double-ended Cordset |
| Connector Type | RJ45 Male |
| Shielding | Shielded |
| Rated Voltage | 30 V |
| Data Transmission | 10GBase-T, Cat6A |
| Data Transmission Rate | 10Gbit/s |
Technical Data Side
| Connector Design | Straight |
| Number of Pins | 8 |
| Coding | RJ45 |
| Ambient Temperature (Operation)* | -25°C to +70°C |
| Protection Degree / IP Rating** | IP20 |
| Housing Material | PC - Polycarbonate, UL94-V0 rated |
| Attachment Plating | Gold plating in contact area |
| Shielding Material | Copper Alloy |
Cable Details
| Cable Type | 4P 26AWG Cat6A S/FTP LSZH Patch Cable |
| Number of Wires | 8 Cores |
| Cable Resistances | 14.5 Ohm/100m |
| ISO/IEC Compliance | ISO/IEC 11801 |
| UL AWM Style Compliance | AWM 21100 |
| Conductor Material | Stranded Bare Copper |
| Cable Jacket Material | LSZH |
| Cable Diameter D | 6.2 mm |
| Wire Insulation Material | Polyolefin |
| Insulated Wire Diameter | 1.08 mm |
| Foil Shield | Shielding: Each pair with individual foil + overall braid shield |
| Ambient Temperature (Fixed Installation) | -20°C to +80°C |
| Flammability Class (Cable Jacket) | FT2, IEC 60332-1, IEC 60332-3A |
| Core Colors | 1: Blue & White, 2: Orange & White, 3: Green & White, 4: Brown & White |
Also Available In
| Item # | Cable Length | Color |
| A7JSJSA6021060030 | 0.3 M | Blue |
| A7JSJSA6021060050 | 0.5 M | Blue |
| A7JSJSA6021000100 | 1 M | Black |
| A7JSJSA6021010100 | 1 M | Brown |
