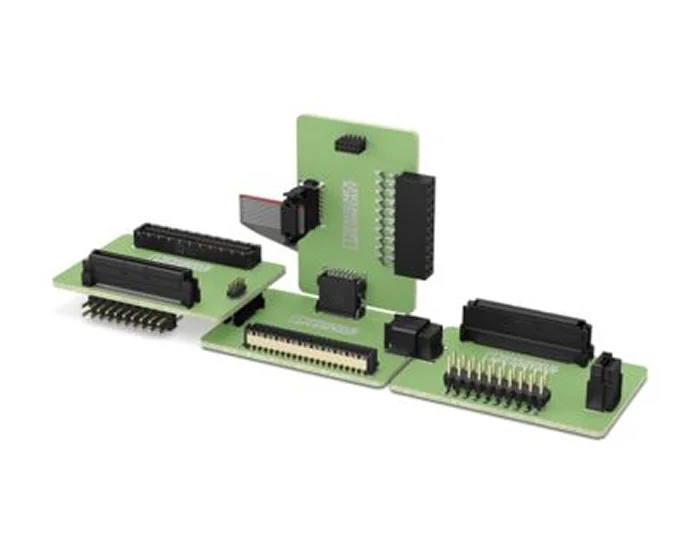

Board To Board Connectors
With the board to board connectors of the FINEPITCH product range, Phoenix Contact provides shielded and unshielded solutions for signal and data transmission. This allows you to implement individual PCB orientations in all dimensions with different designs, stack heights, and numbers of positions in different pitches from 0.635 mm to 2.54 mm. Mezzanine, coplanar connections, and mother-daughter cards are also possible.
Advantages
Flexibility when it comes to design with robust connectors in pitches ranging from 0.635 mm to 2.54 mm in various stack heights.- Application oriented board to board connections in shielded and unshielded versions for various EMC requirements.
- Comprehensive design in support for quick and easy device development with practical data and free samples.
- Various possible applications with high speed data transmission up to 52 Gbps.

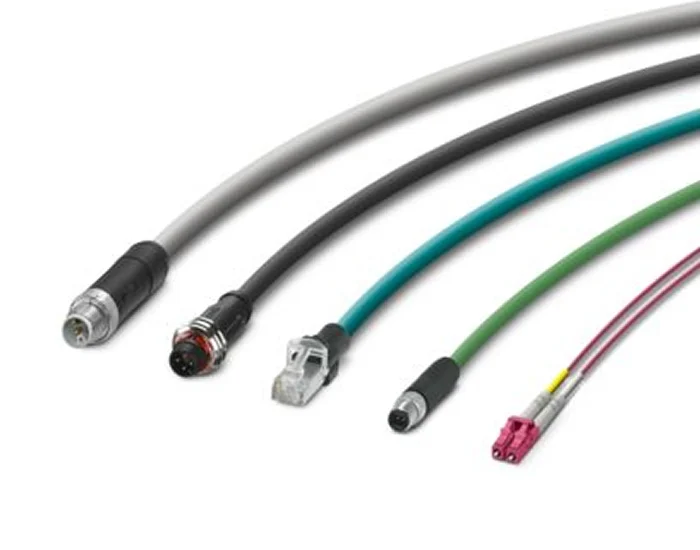

Cables and Lines For Signals, Data, and Power
Whether for signal and power transmission or for networks and bus systems, you can assemble your connectors yourself. Use preassembled cable versions. In addition to the complete range for field installation, Phoenix Contact offers copper and FO based data cables, hybrid cables, signal cables, and power cables. Solutions for photovoltaic, for energy storage systems, and cables by the meter complete the portfolio.
Advantages
- Wide range of applications with diverse connector types and cable qualities.
- Consistent cabling from the control cabinet to field level.
- Reliably sealed up to IP67/IP68 degree of protection.
- Perfectly fitting cabling with customer specific versions starting from a batch size of 1.
- High availability with worldwide production locations.

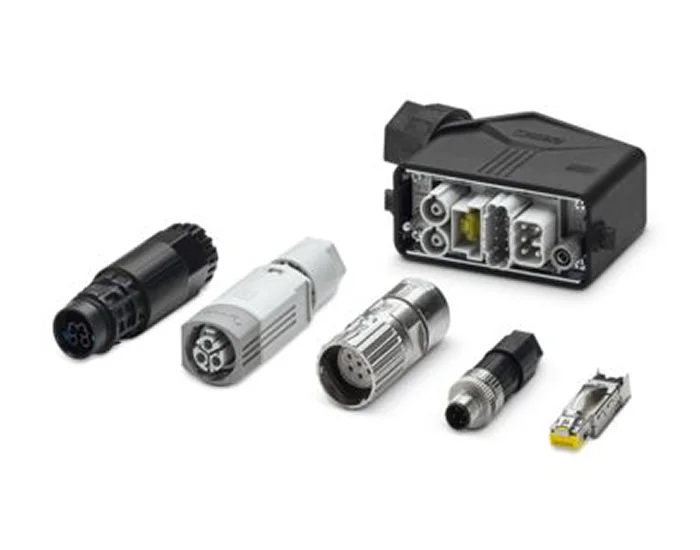

Connectors
Wide variety of connectors: from versatile circular connectors (M5 to M58), data, energy storage, and photovoltaic connectors to heavy-duty industrial connectors.
Phoenix Contact connector portfolio offers solutions for industrial and semi-industrial applications. It also includes application-specific connector systems, as well as cables and lines that are preassembled or designed for assembly.
Advantages
- Numerous possible applications with a large number of designs and modular systems.
- High level reliability with our outstanding level of quality and years of expertise.
- Innovative and time-saving connection solutions for devices with all the usual degrees of protection associated with industrial use.
- High degree of flexibility with customer specific adaptations.
- Expert design-in support.

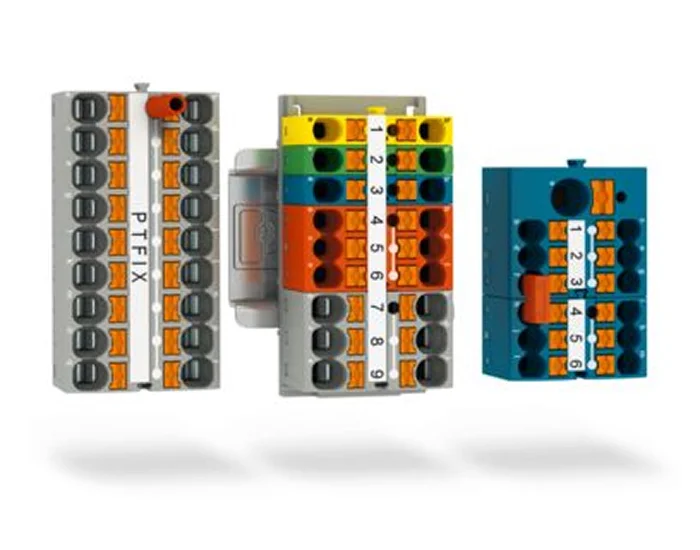

Distribution Blocks For Load and Control Current Distribution
The distribution blocks and device terminal blocks with Push-in and screw connection technology come ready to connect and are available in various cross-sections, numbers of positions, mounting types, and colors. The blocks can be used straight away and extended as needed. The distribution blocks and device terminal block are suitable for flexible and space-saving wiring.
Advantages
- Fast installation with ready to connect distribution blocks and device terminal blocks.
- Significant space savings due to the minimal size.
- Flexible mounting options with various mounting adapters and special adhesive versions.
- Color coded assignment of conductors and terminal points for intuitive and safe installation.
- Standardized accessories - the blocks can be extended, tested, and marked with the Clipline complete accessories without any loss of pitch.

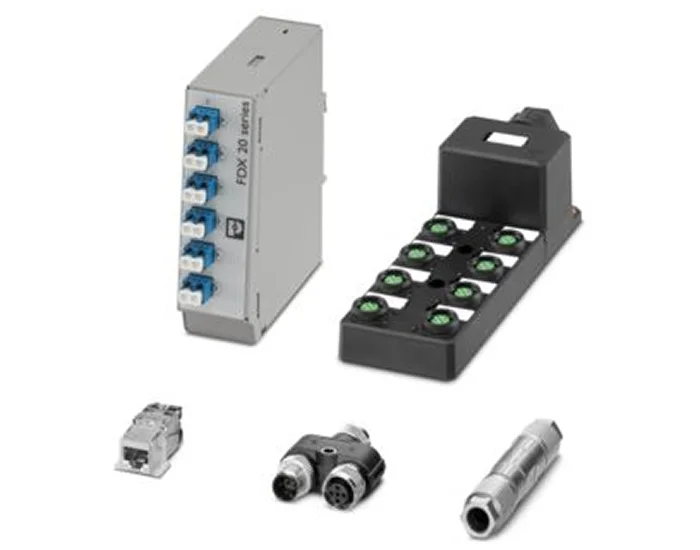

Distributors, Adapters, and Conductor Connectors For Reliable Signal, Data, and Power Cabling
Adapt your signal, data, and power cabling to your specific requirements. We provide consistent solutions for passive field cabling. The extensive product range includes distributor boxes, splice boxes, conductor connectors, adapters, and distributors. We offer a wide range of designs and interfaces for copper and FO applications.
Advantages
- Potential savings by distributing and bundling signals, data, and power.
- Space saving cabling with high position versions.
- 360° shielding for reliable transmission and distribution.
- Flexible integration of new devices.
- Customer specific versions on request.

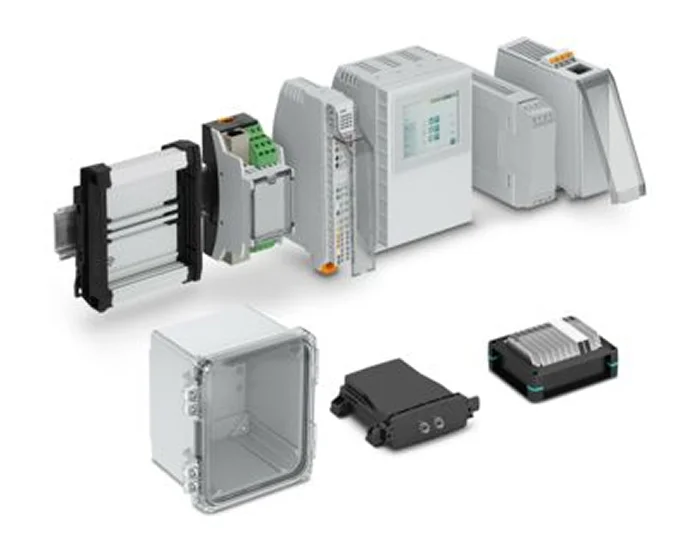

Electronics Housings For The DIN Rail and For Field Applications
Electronics housings come in a wide variety of shapes, colors, and functions. Whether on the DIN rail or in the control cabinet, as a wall housing or in field applications under harsh environmental conditions, the housings provide appropriate protection for your electronics. And the digital configurator features versatile options for integrating electronics housings into your individual applications. New developments are also possible.
Advantages
- Personal support: one dedicated contact person for the duration of the entire project phase.
- Detailed design of your desired concept.
- Development of the ideal production concept and product qualification at our in house laboratory.
- Certification of the solution for your application.
- Targeted project management right through to the start of series production.

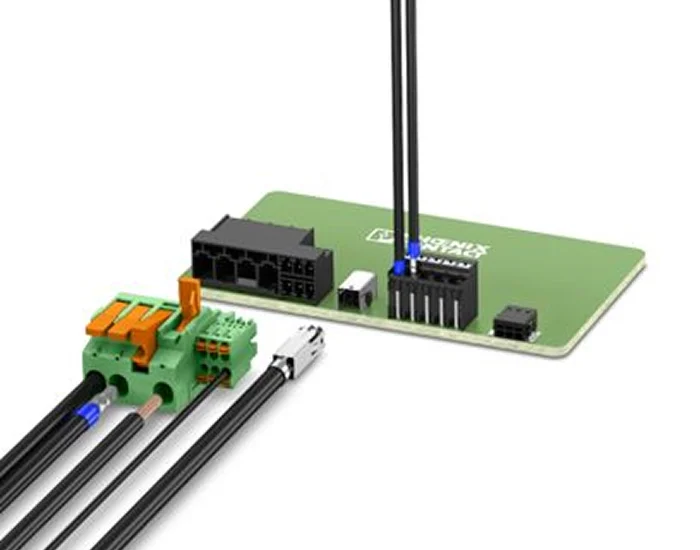

PCB Terminal Blocks and PCB Connectors
Versatile connection technology, reliable connections: PCB terminal blocks and PCB connectors are fundamental components of all electronic devices. Our portfolio provides the right connection technology for the transmission of signals, data, and power for almost all applications. Our portfolio includes PCB terminal blocks and PCB connectors, wire to board connectors, and high current feed through terminal blocks.
Advantages
- Very high degree of flexibility with versatile connection technologies such as Push in or screw connection.
- Can be used in numerous applications and in a wide range of industries with a range of pitches and number of positions.
- Very high degree of reliability with high material quality.
- Long service life with fully developed contact geometries and surfaces.
- Expert support and advice from experienced product specialists for design in projects as well as customer specific versions.
Plug In Test Systems For Protection Technology and Control Engineering
FAME is the innovative, modular plug in test system for measuring and testing tasks in protection technology for medium voltage and high voltage switchgear. The plug in test system combines complex switching operations for testing the function of current transformers and voltage transducers, as well as tripping and signal contacts. You can now perform manual testing operations automatically, safely, and more quickly.
Advantages
- Easy and time saving with functional grouping of switching operations.
- Maximum safety with leading and automatic transformer short circuit.
- Cost effective with the tailored, modular design and use of standardized accessories.
- Space saving with compact plug in test sockets and offset test socket arrangement.
- Flexible with free choice of wall or DIN rail mounting when using the standardized Clipline complete system accessories.
- Safety for users with integrated touch protection.
- Clear overview with large surface marking options and easily identifiable switching states.

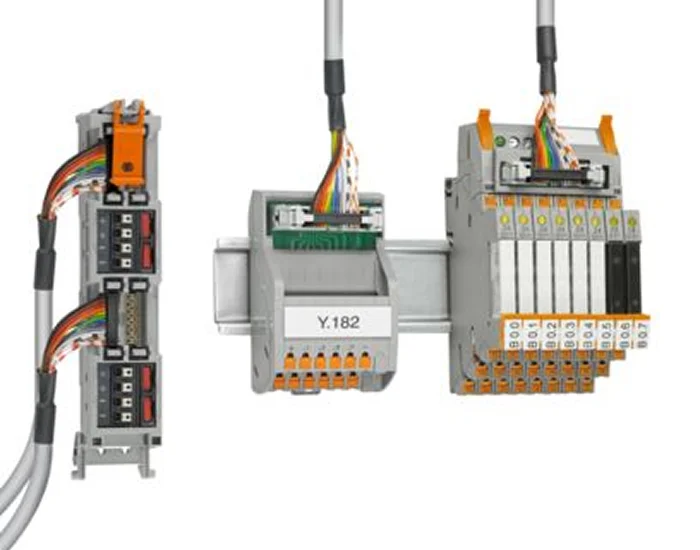

System Cabling For Controllers
Our system cabling for controllers provides you with compact solutions for the simple planning, assembly, and commissioning of your automation system. Pluggable system cables and termination boards ensure your quick, safe, and error-free wiring. Retrofit components help you to update older control systems. This means you save a great deal of time and reduce costs.
Advantages
- Fast, error free 1:1 connection with preassembled system cables.
- Versatile, thanks to components designed for universal use.
- Flexible connections: push in and screw connection technology.

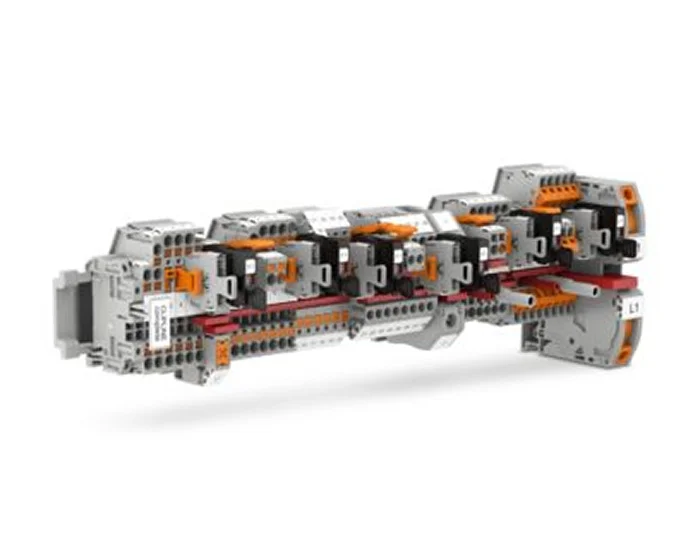

Terminal Blocks With System
The Phoenix Contact terminal blocks enable a high degree of flexibility in terminal strip design. Choose between various connections technologies and combine the terminal blocks by installing bridges in the double function shaft. The terminal block system features standardized bridging, marking, and test accessories.
Advantages
- Complete flexibility: terminal blocks with different connection technologies can be freely combined.
- Bridging and testing option with double function shaft.
- Additional test option with integrated test points, eliminating the need for removing conductors or bridges.
- Save money with uniform bridging, marking, and test accessories.
- Extensive digital data.
