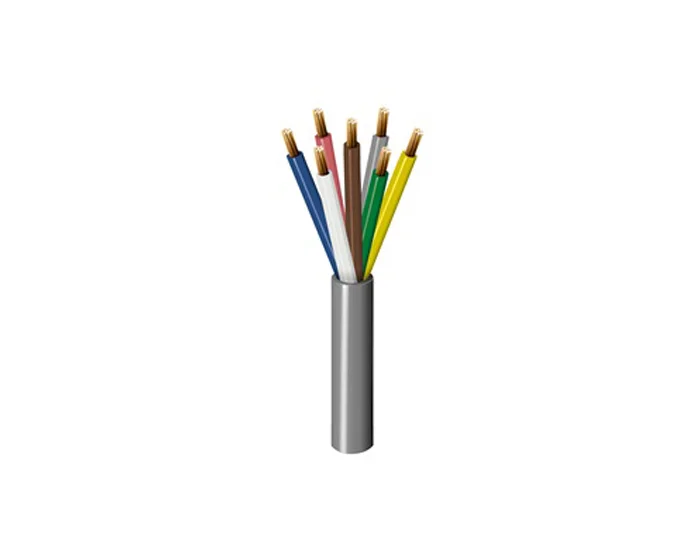

3C0.5YY
Product Description
MachFlex™ LiYY, 3 C 0.5mm² Str BC, PVC Ins, PVC Jkt
Specifications
Product Overview
Designed for applications which are installed in occasional flexing and fixed locations. Cable applications include precision control sensors, pressure gauge, temperature controllers, control panels, vibration monitoring systems, intelligentsecurity controllers, production machinery and many more
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Conductor(s) | 3 | 0.5 mm² | Stranded | BC - Bare Copper |
Insulation
| Material | Color Code |
| PVC - Polyvinyl Chloride | White, Brown, Green |
Outer Jacket
| Material | Overall Cable Diameter (Nominal) |
| PVC - Polyvinyl Chloride | 4.8 mm (0.19 in) |
Electrical Characteristics
Electricals
| Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Shield |
| 120 pF/m (37 pF/ft) | 160 pF/m (49 pF/ft) |
Voltage Rating
| Voltage Rating |
| 500 V (Max. Operating Voltage), 1500 V (Testing Voltage) |
Mechanical Characteristics
Temperature
| Operating | Installation |
| -5°C to +70°C (Occasional movement) | -40°C to +80°C (Fixed installation) |
| Item # | Color | Length |
| 3C0.5YY 010100M | Black | 100 m |
| 3C0.5YY 010200M | Black | 200 m |
| 3C0.5YY 010300M | Black | 300 m |
| 3C0.5YY 006100M | Blue | 100 m |

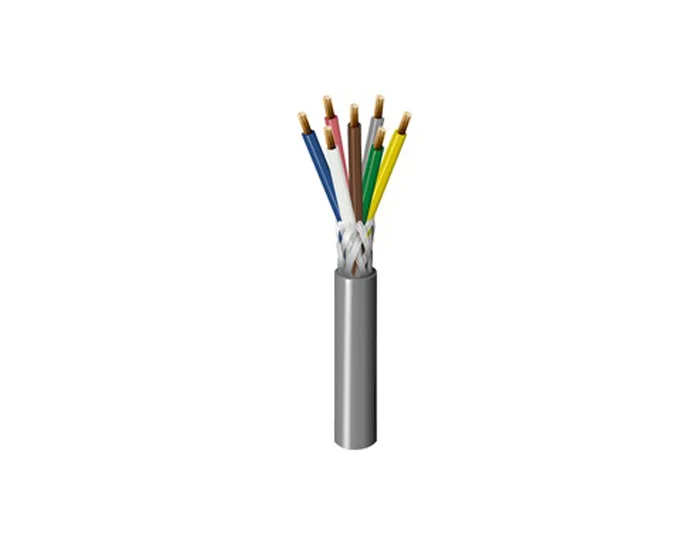

3C1.0YCY
Product Description
MachFlex™ LiYCY, 3 C 1 mm² Str BC, PVC Ins, TCBS, PVC Jkt
Specifications
Product Overview
Designed for applications which are installed in occasional flexing and fixed locations. Cable applications include precision control sensors, pressure gauge, temperature controllers, control panels, vibration monitoring systems, intelligent security controllers, production machinery and many more. Tinned copper braid shield ensure the cables with excellent noise immunity
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Conductor(s) | 3 | 1 mm² | Stranded | BC - Bare Copper |
Insulation
| Material | Color Code |
| PVC - Polyvinyl Chloride | White, Brown, Green |
Outer Shield
| Shield Type | Material |
| Braid | Tinned Copper (TC) |
Outer Jacket
| Material | Overall Cable Diameter (Nominal) |
| PVC - Polyvinyl Chloride | 6.2 mm (0.24 in) |
Electrical Characteristics
Electricals
| Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Shield |
| 120 pF/m (37 pF/ft) | 160 pF/m (49 pF/ft) |
Voltage
| Voltage Rating |
| 500 V (Max. Operating Voltage), 1500 V (Testing Voltage) |
Machanical Characteristics
Temperature
| Operating | Installation |
| -5°C to +70°C (Occasional movement) | -40°C to +80°C (Fixed installation) |
| Item # | Color | Length |
| 3C1.0YCY 010100M | Black | 100 m |
| 3C1.0YCY 010200M | Black | 200 m |
| 3C1.0YCY 010300M | Black | 300 m |
| 3C1.0YCY 006100M | Blue | 100 m |

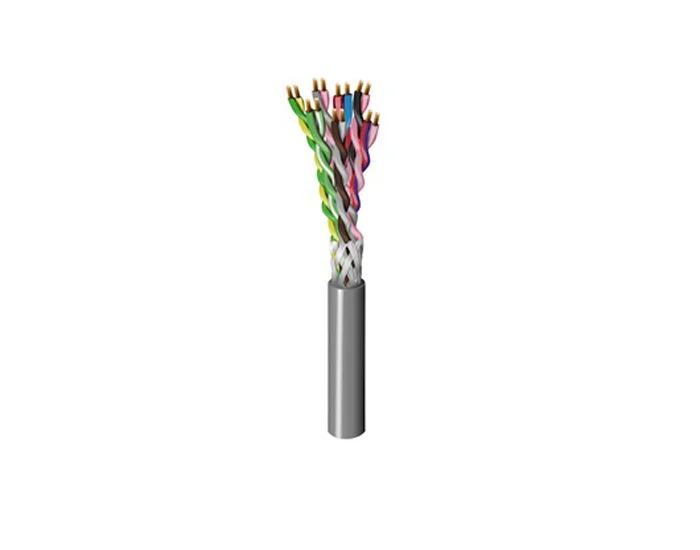

4P0.75YCY
Product Description
MachFlex™ LiYCY(TP), 4 Pr 0.75 mm² Str BC, PVC Ins, TCBS, PVC Jkt
Specifications
Product Overview
Designed for applications which are installed in occasional flexing and fixed locations. Cable applications include precision control sensors, pressure gauge, temperature controllers, control panels, vibration monitoring systems, intelligent security controllers, production machinery and many more. Tinned copper braid shield ensures the cables with excellent noise immunity. Twisted‐pair (TP) design reduces crosstalk effects.
Conduction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Pair(s) | 4 | 0.75 mm² | Stranded | BC - Bare Copper |
Insulation
| Material | Color Code |
| PVC - Polyvinyl Chloride | 1. White & Brown, 2. Green & Yellow, 3. Gray & Pink, 4. Blue & Red |
Outer Shield
| Shield Type | Material |
| Braid | Tinned Copper (TC) |
Outer Jacket
| Material | Overall Cable Diameter (Nominal) |
| PVC - Polyvinyl Chloride | 10.0 mm (0.394 in) |
Electrical Characteristics
Electricals
| Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Shield |
| 120 pF/m (37 pF/ft) | 160 pF/m (49 pF/ft) |
Voltage
| Voltage Rating |
| 500 V (Max. Operating Voltage), 1500 V (Testing Voltage) |
Mechanical Characteristics
Temperature
| Operating | Installation |
| -5°C to +70°C (Occasional movement) | -40°C to +80°C (Fixed installation) |
| Item # | Color | Length |
| 4P0.75YCY 010100M | Black | 100 m |
| 4P0.75YCY 010200M | Black | 200 m |
| 4P0.75YCY 010300M | Black | 300 m |
| 4P0.75YCY 006100M | Blue | 100 m |

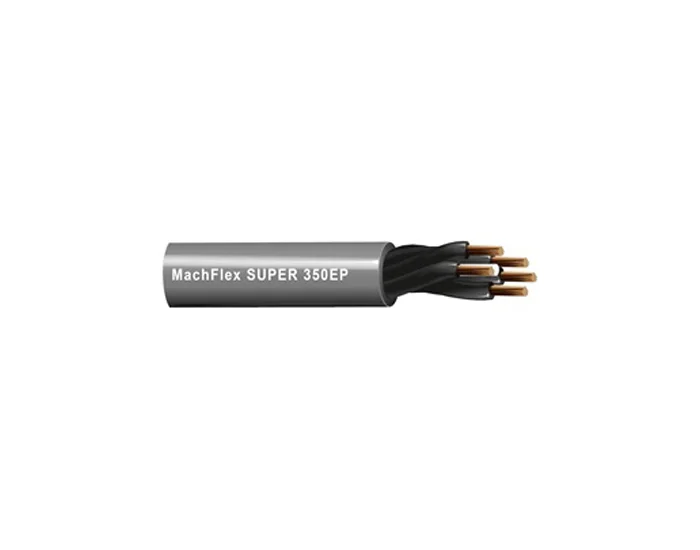

H2X1.0 G8U500M
Product Description
MachFlex™ High Flex Super 350EP Control Cable 2 C, 0.75 mm² Str BC, TPE Ins, PUR Jkt
Specifications
Product Overview
Applicable for high flexible (5 million flex cycles) installation connecting precision control sensors, multi-axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery, and many more in industrial environments.
Condction Details
Conductor
| Element | No. of Elements | Size | Stranding | Stranding Class | Material |
| Conductor(s) | 2 | 0.75 mm² | Stranded | Class 6 | BC - Bare Copper |
Insulation
| Element | Material | Color Code |
| Conductor(s) | TPE - Thermoplastic Elastomer | Black #1, Black #2 |
Outer Jacket
| Material | Overall Cable Diameter (Nominal) |
| PUR - Polyurethane | 5.7 mm (0.22 in) |
Electrical Characteristics
Voltage
| Voltage Rating |
| 300 / 500 V (Max. Operating Voltage) |
Mechanical Characteristics
Temperature
| Installation | Continuous Flexing |
| -40°C to +80°C (Fixed installation) | 0°C to +70°C |
Also Available In
| Item # | Color | Length |
| HF2X0.75EP 010100M | Black, RAL 9004 | 100 m |
| HF2X0.75EP 010200M | Black, RAL 9004 | 200 m |
| HF2X0.75EP 010500M | Black, RAL 9004 | 500 m |
| HF2X0.75EP G8U100M | Gray, RAL 7001 | 100 m |
